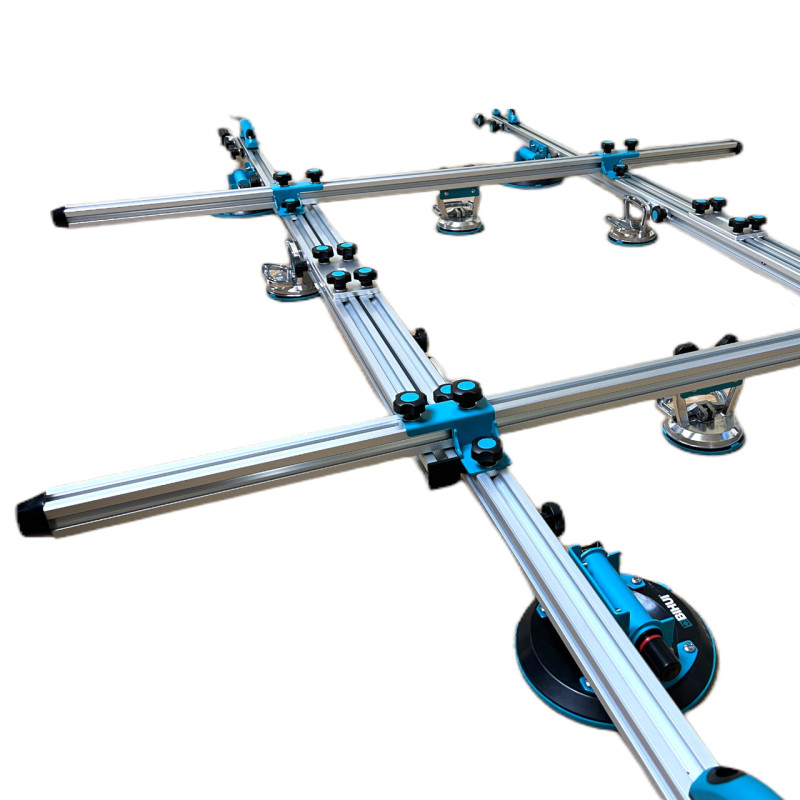

BIHUI SLIM TRANS 4 Transportation System for Large-Format Porcelain Tiles

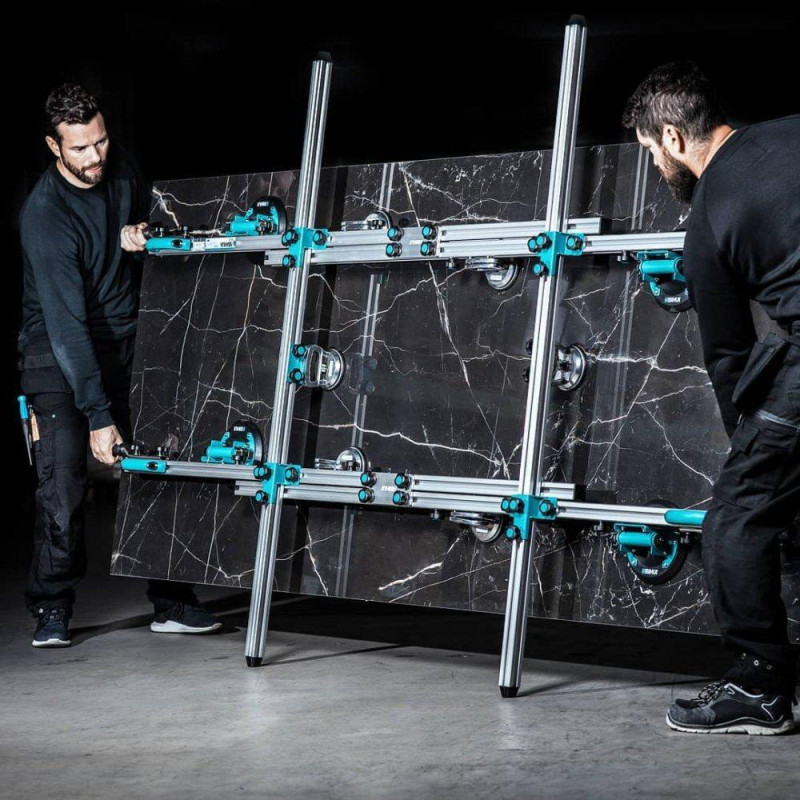

The BIHUI SLIM TRANS transportation system is designed for the efficient lifting, moving, and installation of large-format tiles with maximum dimensions up to 320 cm in length, 160 cm in width, and weighing up to 200 kg.

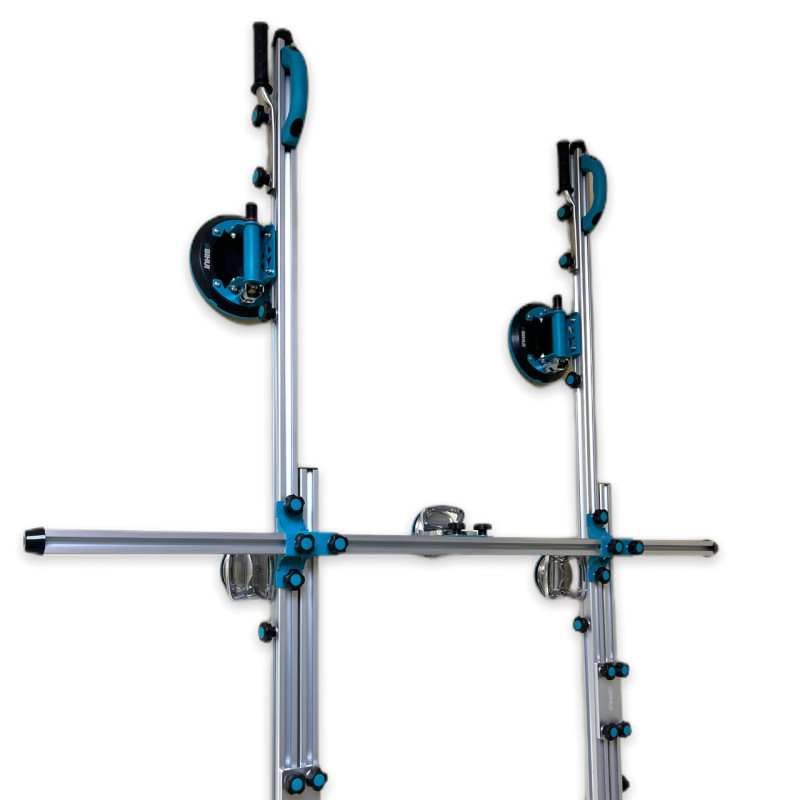

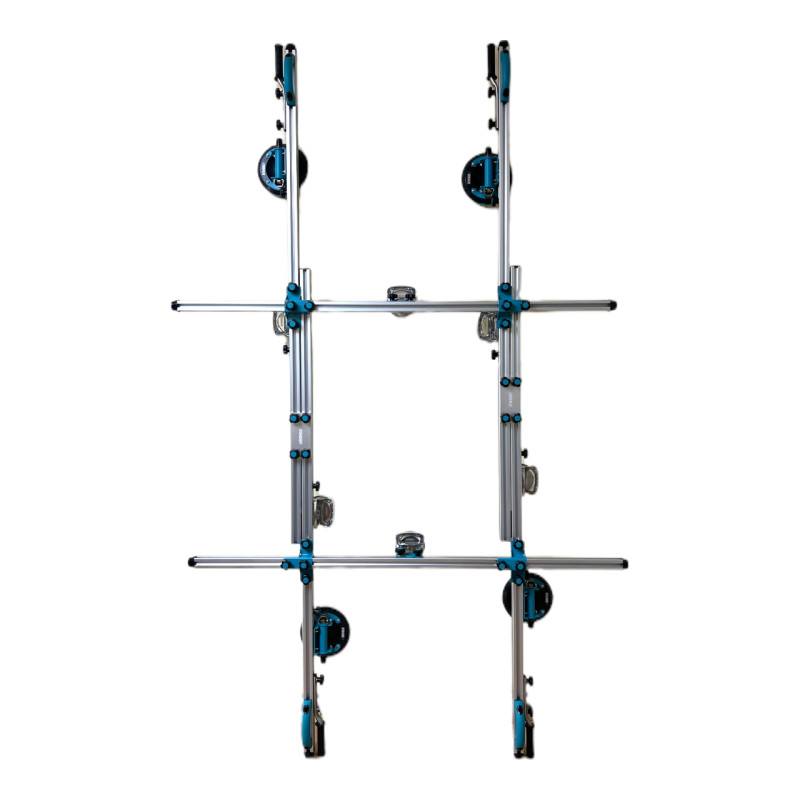

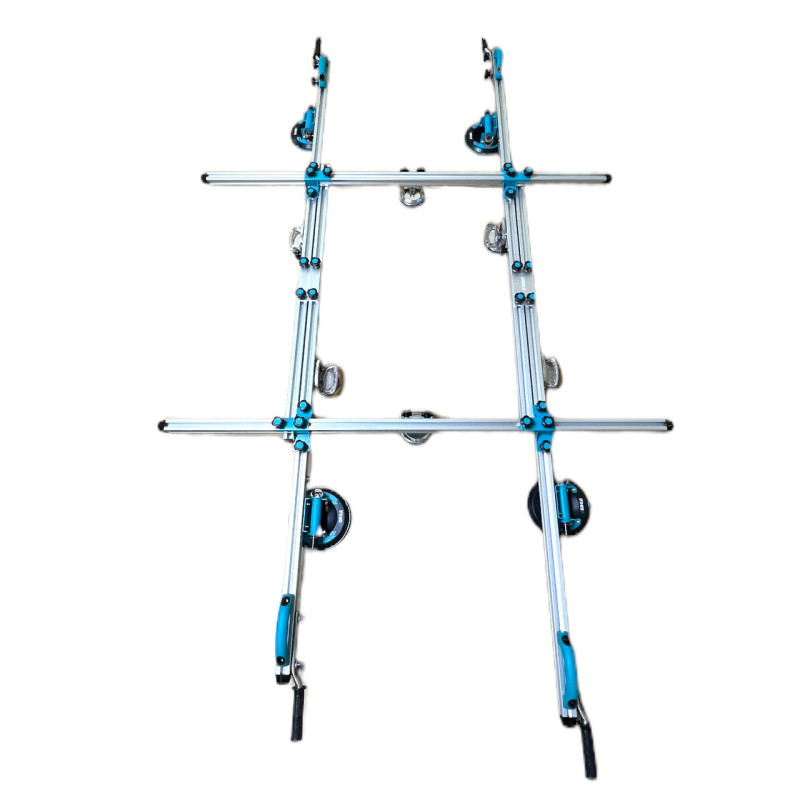

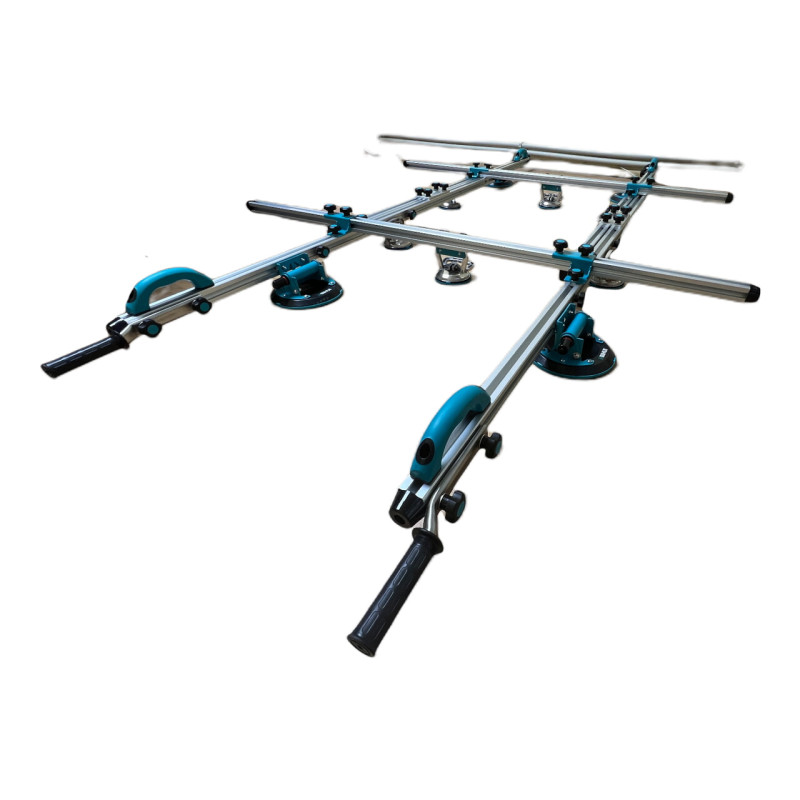

The system consists of two robust telescopic extruded aluminum profiles, which can be adjusted to accommodate different tile sizes (ranging from 165 to 320 cm), as well as two transverse bars to enhance the stability and strength of the system. For transporting tiles with a smaller width, only one profile can be used. The system is equipped with four adjustable handles (two on each profile), allowing BIHUI SLIM TRANS to be maximally adapted to various tile formats.
This system for large-format tiles is equipped with four vacuum suction cups with a pneumatic pump, 203 mm (8 inches) in diameter, and six regular lever-operated suction cups, 115 mm in diameter. The positioning of the suction cups can be configured to ensure safe and convenient tile handling.
Note! This system offers a "two-in-one" feature: the vacuum suction cups can be detached and used independently for carrying and laying tiles.
The weight of one telescopic profile with suction cups is 11 kg.
Advantages of BIHUI SLIM TRANS:
-
Removable vacuum pump suction cups;
-
Capability to work with tiles up to 320 cm in length and a minimum of 100 cm. For shorter tiles, the system can be split into two separate parts;
-
Groups of suction cups easily move along the guides and are equipped with a quick-lock system;
-
Adjustable suction cup groups allow for adaptation to tile shapes, ensuring reliable adhesion;
-
Vacuum suction cups Ø203 mm are ideal for smooth and less structured tiles, with adjustable pressure settings;
-

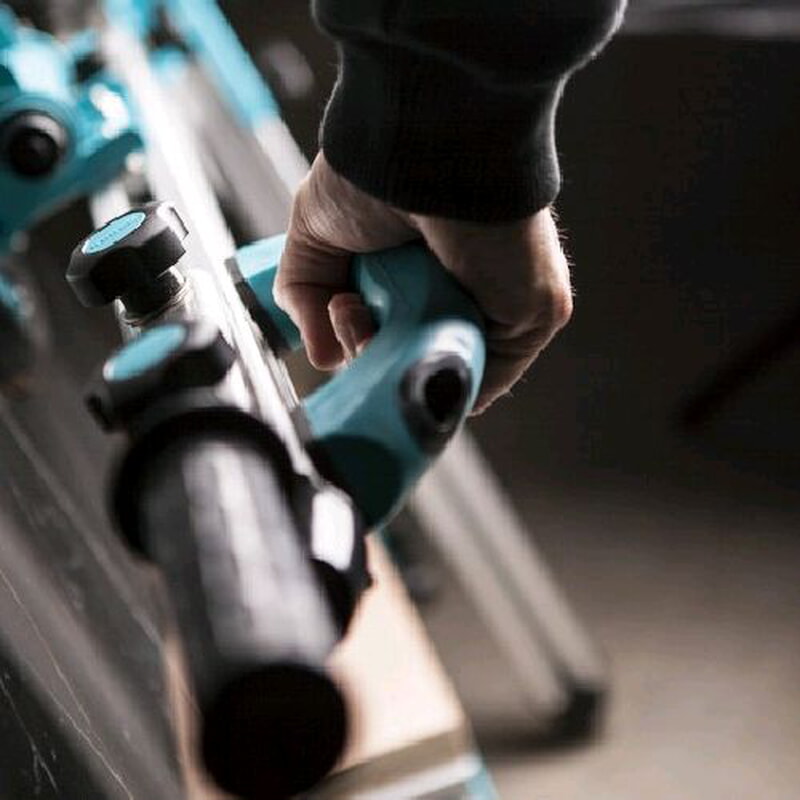

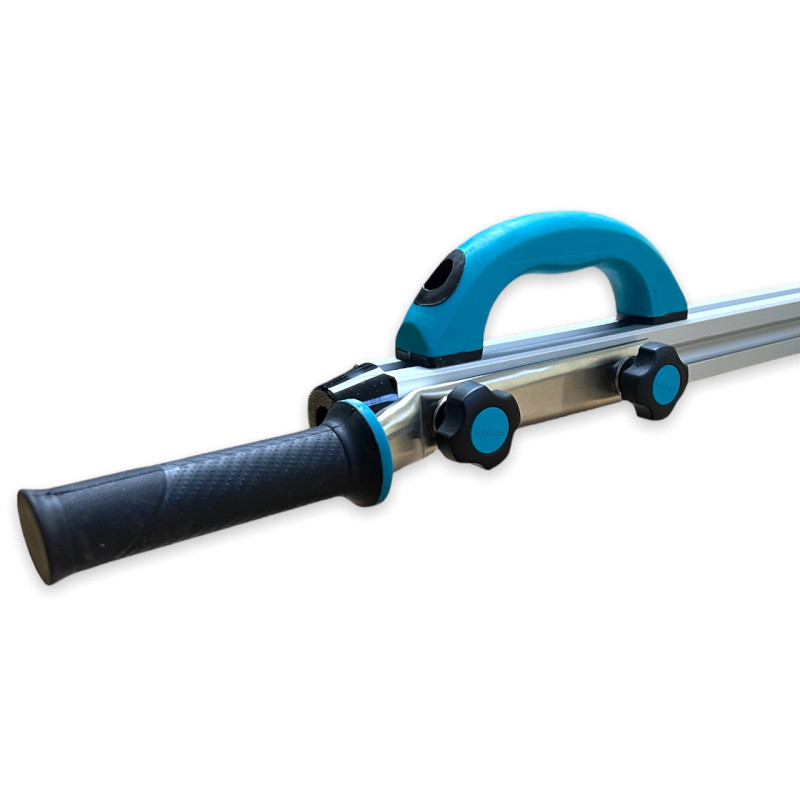

Handles with guides that easily lock and unlock make lifting more ergonomic and facilitate easy wall access;
-
Full disassembly ensures convenient transportation.
Materials:
-
Guide frames: extruded aluminum;
-
Fasteners: steel;
-
Ergonomic handles with support tips: high-wear-resistant polyurethane;
-
Suction cups: special polyurethane compound with adhesion channels on the suction surface.
Package Contents:
-
Aluminum suction cups, 115 mm in diameter – 6 pcs;
-
Vacuum suction cups, 200 mm in diameter with a pneumatic pump – 4 pcs;
-
Reinforced telescopic profiles - 2 pcs;
-
Transverse bars – 2 pcs.
